DESCRIPTION

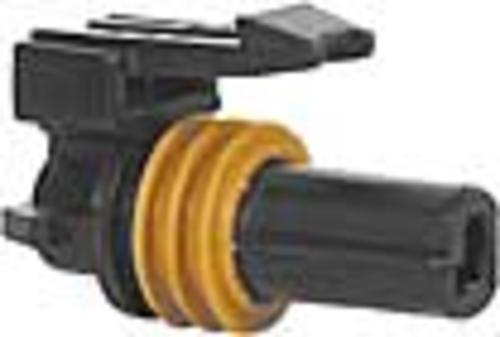

"IMPERIAL"   TERMINAL

• Metri-Pack 280 Series Terminal.
• Uses triple-rib peripherial silicone rubber seals, making them ideally suited for critical, low-energy electronic applications that require protection from environental hazards.
• Low energy, low voltage.
• Excellent resistance to temperature, chemicals, and abrasion.
• Temperature Range: -40° C. to 125° C.
• 30 amps continuous maximum current rating.
• Cross Reference: 12065172
• Single Female Housing used with Single Male Housing, Part No. 74005, Female Terminal (16-14 gauge), Part No. 74000, Terminal Position Assurance (Single), Part No. 74006, and Connector Position Assurance, Part No. 74007.
• Can be used with Gray Cable Seal (16-14 gauge), Part No. 74002 or Blue Cable Seal (12 gauge), Part No. 74003.
• To disassemble, use Metri-Pack Release Tool, Part No. 74048.
