DESCRIPTION

Highlights:-

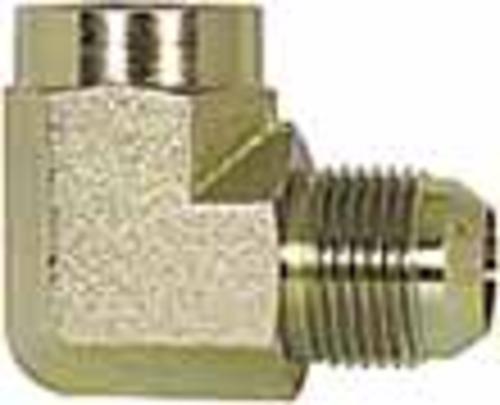

• Female Elbow Fitting
• SAE 37° (JIC) Steel 90°female Elbow Fitting.
• Working pressure up to 10,000 psi, depending on tube and fitting size.
• Used with copper, brass, steel, aluminum, and other tubing that can be flared.
• Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
• Meets or exceeds ASA, ASME, SAE, and MS specifications.
• Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
• Tube Outside Diameter: 1/2
• Thread Size: 3/4–16
• Pipe Thread: 3/8
• Cross Reference: C5455 x 8

Assembly Instructions:

• Slide nut on tubing. Threaded end of nut must face out.
• Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
• Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
• Assemble tubing to fitting body. Tube nut should be turned hand tight.
• Tighten assembly with a wrench.
